技術參數表
口徑
轉速
壓力
溫度
介質
備注：
技術參數數據為最大值,并不能同時使用；
超出技術參數范圍的使用工況請咨詢德威邇公司技術部：0632-5832779-603
產品特點

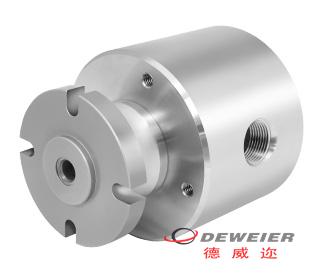

德威邇公司生產的旋轉接頭替代美國進口的HPS Series Rotary Unions：高壓、不銹鋼、多通道旋轉接頭 HPS系列旋轉接頭特點高壓設計，全不銹鋼結構適用于海洋和海洋環境。
產品選型表
CatalogModel
|
Max. Pressure¹ |
20,000 PSI (1,375 BAR) |
|
Max. Vacuum¹ |
N/A 鈥? Not for use with vacuum |
|
Max. Rotational Speed¹ |
50 RPMPlease note operational life is dependent upon both rotational speed and duty cycle. Contact DSTI if your application requires operating close to the maximum rotational speed with a continuous duty cycle. |
|
Temperature Range¹ |
0° F to 220° F (-18° C to 105° C)² |
|
Part # |
Thru Bore |
Overall Diameter |
Overall Length |
Min Torque* |
Passage Size |
Connection |
Part Downloads |
Quote |
|
HPS-4310 |
--- |
3.437 |
5.010 |
6 |
0.203 |
3/8" OD, 9/16"-18 UNF M/P |
DWGSTEPPDF |
Get Quote |
|
HPS-4510 |
--- |
4.437 |
5.010 |
6 |
0.438 |
3/4" OD, 3/4"-14 NPS M/P |
DWGSTEPPDF |
Get Quote |
